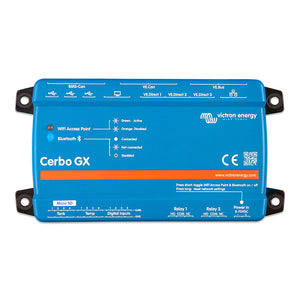

Victron Cerbo GX MK2

Specifications:

• Remote Console: Yes
• Buzzer: Yes
• VE.Direct ports (always isolated): 3
• VE.Bus (always isolated): 2 paralleled RJ45 sockets
• VE.Can: Yes, VE.Can 1 isolated & VE.Can 2 non-isolated
• USB: 3 USB Host ports
• Ethernet: 10/100 RJ45 socket - isolated except for shield
• WiFi: Built-in
• Bluetooth Smart: Yes
• Micro SDcard slot: SDHC cards up to max. of 32GB (5)
• Second CAN-bus port (BMS-Can): Yes - see VE.Can
• BMS-Can port: No
• Built-in RS485: No
• Programmable Relay: 2 x NO/NC (8), DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A, 125VAC
• Resistive Tank Level Inputs: 4
• Temperature Sense Inputs: 4
• Same as part# BPP900450110 other than Country of Origin
• Digital Inputs: 4

Performance Specifications:

• CPU: Dual-core
• RAM: 1GB
• Max. VE.Direct Devices: 15

Other Specifications:

• Supply Voltage: 8 - 70 VDC
• Power Draw: 2,5 to 5 W
• Mounting: Wall or DIN rail (35mm)
• Outer Dimensions  (H x W x D): 478 x 154 x 48 mm
• Operating Temperature: -20 to +50 degrees C
• Battery Backup Clock: Yes
• 5V Output: No

Standards:

• Safety: IEC 62368-1
• EMC: EN 301489-1, EN301489-17
• Automotive: ECE R10-6

Perfect Monitoring & Control

Instantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s), or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.

Maximize Your System Performance

The Cerbo GX MK2 maximizes the performance of a system's components in real time and keeps them in perfect tune. This enclosure has two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port. VE.Can 1 is isolated. In the previous models, there was no isolated canbus port. This can be useful where a Lynx Smart BMS (VE.Can connection) as well as an RV-C port are required.

Expand Your View

The (optional) GX MK2 Touch 50 display gives users an instant overview of their system and adjust settings in the blink of an eye. Its super slim 5-inch waterproof design, top-mountable setup, and simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Simple Mounting & Configuration

The Cerbo GX MK2 is now optimized to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included), and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX MK2). It is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via the VictronConnect app.

Outsmart Any Power Challenge
